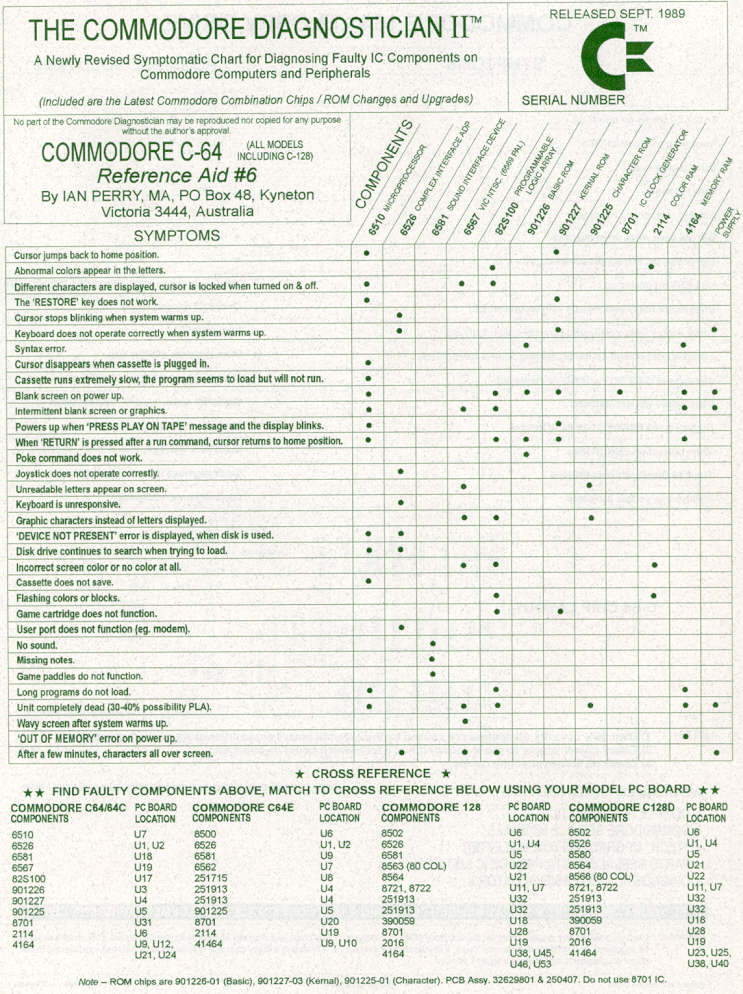

Commodore 64 & 128 Hardware Failure Cheat Sheet

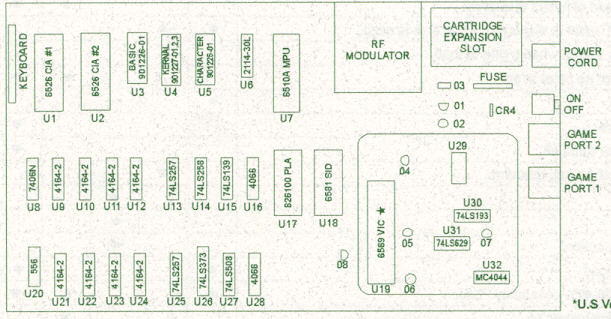

See the original scan and C64 motherboard layout at the bottom of this page


Commodore Diagnostician II
By Ian Perry, Kyneton, Victoria 3444, Australia
Sept 1989

courtesy of
(C) 2002 2003 2004 Up & Running Technologies Incorporated
